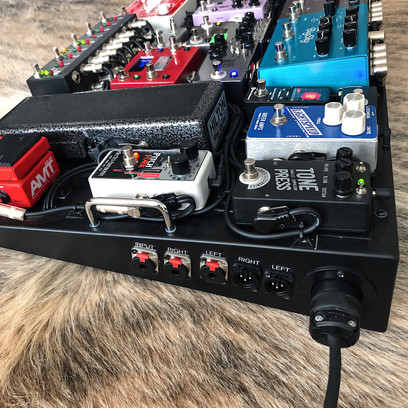

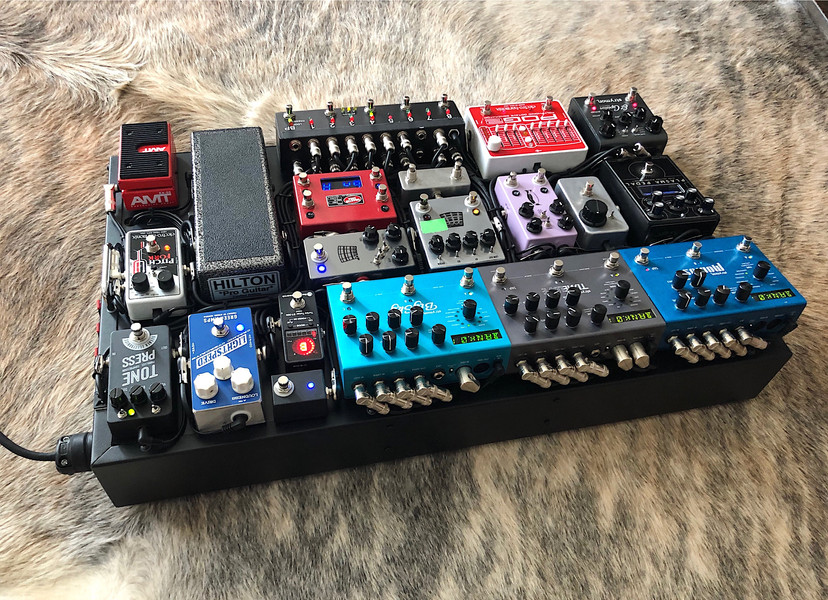

HERE IS MY CURRENT PEDALBOARD - BUILT BY THE MASTER DAVID PULEO. IT'S A 30X18 TRAILERTRASH PRO SERIES BOARD. I'M A FAN OF THEIR ANGLED BOARDS AND HAVE USED THEM SINCE 2012. I LOVE BEING ABLE TO MOUNT POWER SUPPLIES AND RUN CABLES UNDERNEATH THE BOARD TO KEEP THINGS CLEAN AND THE SLIGHT INCLINE OF THE ANGLED BOARD IS SUPER COMFORTABLE TO ME. MY LOOPER IS A BUILD YOUR OWN CLONE PROGRAMMABLE SUPER 8. I WENT WITH THIS LOOPER A FEW YEARS AGO FOR ITS COMPACT SIZE AND FUNCTION. IT'S SIMPLE, EFFECTIVE, AND COMPACT. I BUILT MY FIRST ONE FROM BYOC'S KIT, AND THEN GOT THIS ONE PRE-ASSEMBLED AND KEPT MY OTHER ONE AS A BACKUP. I LOVE THIS LOOPER BECAUSE IT IS THE SIZE OF A 5 CHANNEL LOOPER, BUT HAS 8 LOOPS [OR PRESETS] FULLY ACCESSIBLE ON ONE PAGE. I USE THE DMC-4 TO BANK AND SELECT PRESETS SIMULTANEOUSLY ON MY TIMELINE AND BIGSKY, AND A SMALL BANK SWITCH I MADE TO BANK UP AND DOWN ON MY MOBIUS.

HERE IS MY SIGNAL CHAIN:


GOODWOOD UNDERFACER TX  [FEATURES BUFFERED SEND TO PEDALS, TUNER OUT, GROUND LIFT, SUMMING,                                                   AND PHASE SWITCH]

BARBER TONEPRESS

BYOC SUPER 8 LOOPER

LOOP 1 EHX PITCHFORK W/ AMT EXPRESSION   [BASICALLY MAKES IT A WHAMMY]

LOOP 2 EHX POG 2

LOOP 3 GREER AMPS LIGHTSPEED

LOOP 4 JHS KILT V1    [LOWER GAIN DRIVE SETTING AND BOOST TO HIT THE AMPS HARDER FOR LEADS]

LOOP 5 JHS KILT V2 W/ RED REMOTE FOR FLIPPING G2 TOGGLE     [I RUN THIS KILT MORE LIKE A FUZZ]

LOOP 6 PLASMA  [THIS PEDAL IS NUTS! CRAZY FUZZ WITH AN AMAZING BUILT IN GATE TO KEEP IT QUIET AND               IT ALSO HAS A BLEND KNOB TO BLEND IT WITH YOUR CLEAN TONE OR ANOTHER DRIVE. I BLEND IT                   WITH THE V2 KILT IN A FUZZ SETTING. SOUNDS MASSIVE!]

LOOP 7 EMPTY

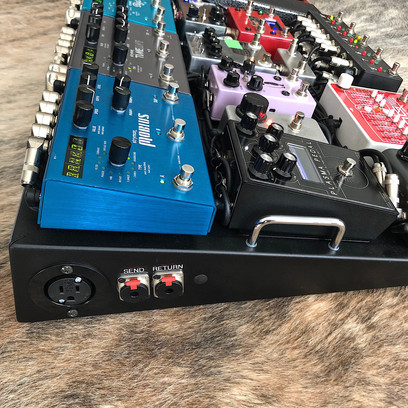

LOOP 8 WIRED TO SEND/RETURN JACKS FOR ADDING OR AUDITIONING PEDALS

HILTON PRO GUITAR VOLUME PEDAL

EHX FREEZE      [NOW IN IT'S PLACE IS A RED PANDA PARTICLE v2]

JHS EMPEROR V2      [MY SIGNAL CHAIN IS STEREO OUT OF THIS PEDAL FOR THE REST OF THE BOARD]

STRYMON EL CAPISTAN V2

STRYMON MOBIUS

STRYMON TIMELINE

STRYMON BIGSKY

BACK INTO GOODWOOD UNDERFACER

TA LINK

1/4" AND XLR OUTPUT JACKS

​

POWERED BY STRYMON ZUMA AND TWO OJAIS. ALL MOGAMI CABLE. CUSTOM CASE BY CREATION.
